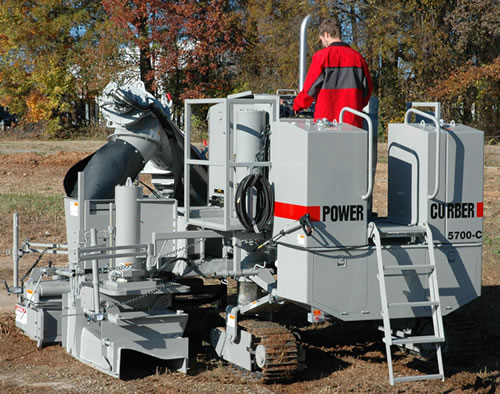

Power Curber 5700-C: Specifications

Slipform Paving

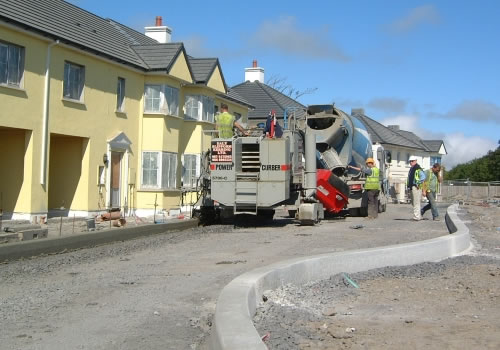

Curb/Sidewalk Width: Maximum 2m in the offset position or 3m in the center pour position.
Maximum 2.5m wide offset or 3.65m center pour with MAX Package.

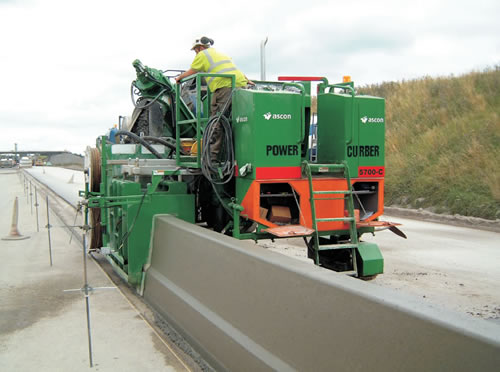

Barrier/Parapet Height: Maximum 1.5m Maximum 2.5m tall with MAX Package.

Mold: One, up to 813mm wide, with quick release, interchangeable hopper is standard.

Engine

Type: Cummins QSB4.5-130C diesel 4-cylinder/4-stroke, turbo charged, Tier III emissions compliant.

Power: 130 HP (97kW) @ 2400 RPM

Option: Engine Mounted Air Compressor for clean-up or air-operated hand-tools.

Fuel Tank: 250 liters

Hydraulic Tank: 189 liters

Transport Dimensions

Length: 6.1m. Add 203mm for MAX Package.

Width: 2.6m

Height: 3.2m
2.5m without exhaust stack
Add 127mm for MAX Package.

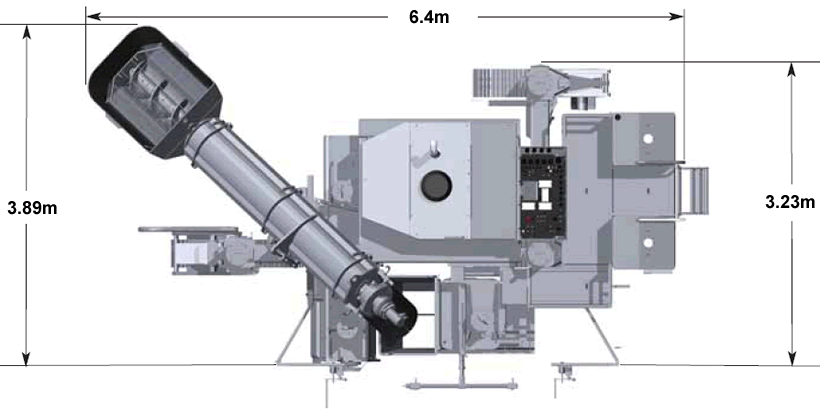

Dimensions diagram

Controls

Smart Amps™: Digital amplifiers provide electronic over hydraulic control for grade, forward and reverse steering, and slope.

Features: Adjustment for sensitivity and deadband offering the operator accuracy and feel, without complexity; self diagnostics; and automatic shut-off for sensors that leave the stringline.

Convenience & Safety: Synchronized ON/OFF for vibrators & crawlers. Five Emergency-Stop switches and a Horn for operator and chute man.

Option: Networked Digital Control with autoslope, cruise control, 3-D readiness, advanced set-up flexibility, and a large graphic display.

Trimmer

Cutting Width: 1070mm; up to 1980mm with optional extensions. Carbide teeth.

Cutting Head Diameter: 530mm

Maximum Trim Depth: 150mm

Lateral Shift: 2030mm hydraulically

Vertical Shift: 635mm; 406mm hydraulically, 228mm mechanically

Options: Trimmer Extensions in 152mm, 305mm, and 610mm widths.

Auger Conveyor

Drive: Direct drive with high torque motor; variable speed and reversible.

Volume: 3/4 m3 capacity and 0-1.5m3/min rate of movement.

Positioning: Pivots, hydraulically tilts and slides 610mm. Discharge chute swivels providing additional flexibility in set-up.

Size: 7m long and 356mm diameter.

Features: Heavy duty cast flighting with lid for full enclosure.

Water System

Washer: 2,000 psi (138 bar or 13.8Mpa) high pressure system with trigger control and adjustable spray nozzle.

Tank: Stainless steel with 500 liters capacity.

Options: Low Pressure system, Mold Misting kit, Charge Hopper Water kit, and Auxiliary Water Tank, 348 liters.

Vibration

Vibrator Circuits: Six hydraulic circuits with variable speed and independent control.

Vibrators: Two, with adjustable mounts.

Options: Extra vibrator(s) with hanger and extra vibrator circuits (three).

Hydraulic Adjustable Offset

Lateral Shift: 610mm hydraulically with positive mechanical locking.

Vertical Shift: 635mm; 406mm hydraulically, 228mm mechanically.

Option: Hydraulic Mold Offset Lock

Crawlers & Elevation Posts

Type: Three hydraulically powered crawler tracks with planetary gear reduction.

Tracks: 305mm wide steel pads

Speed: Travel at 33.5m/min
21m/min with MAX Package
Pouring at 15m/min
10.5m/min with MAX Package

Minimum Turning Radius: 610mm Right at 6.1m

Post Extension: 914mm hydraulic cylinders

Straddle Leg: 559mm of hydraulic side shift adjustment.

Options: Polyurethane Track pads and All Crawler Steering. Requires optional Networked Digital Controls.

Optional Equipment

Quick Connect Mold Mount: Hydraulically operated

Hydraulic Front Grade Sensor Arm: In operator controlled and automatic versions

Dual Side Pouring: Allows you to pour from either the left or right side

Light Kit: Four post mounted spot lights

Barrier Mold Lift: Hydraulically operated, with 610mm lift, independent of the machine's post extension.

Weight Pod: 900kg

Post Hole Digger: 305mm auger diameter. Maximum hole depth is 864mm. Requires optional Quick Connect Mold Mount.

Center Pour Paving Kit: Available in several widths and configurations

Stringline Accessories: Stakes, rods, clamps, string, radius materials, winches, etc., available individually or in kits.

Net Weight

Machine: 11,200kg
Weight is approximate and will vary depending on optional accessories and size of mold.

Full Water Tank: Add 500kg

Full Fuel Tank: Add 215kg

Quick Connect: Add 340kg

Dual Side Pouring: Add 270kg

MAX Package: Add 1,135kg.

Dimensions for the Power Curber 5700-C slipform paver
